JK006D VHF microphone module

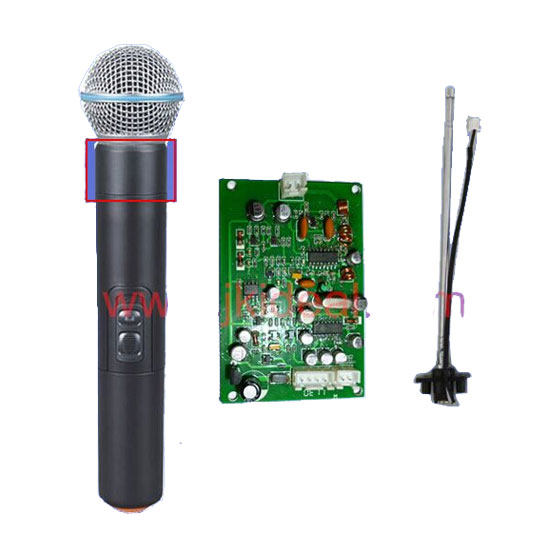

Wireless receiver board(SMD) +antenna+ handheld microphone (1 by 1)

Product features:

•Low-cost wireless microphone solution
•Includes receiver PCB and one microphone
•Selectable frequency:220MHz-270MHz.
•50 meters service range
Use VHF frequencies 220MHz -270MHz, avoid frequency interference.
Specifically set handheld microphone switch noise to  eliminate circuit.
Setting preventing feedback screaming function, so that effectively reduce by screaming back

Technical parameters:
Frequency:220MHz-270MHz
Channel:Single channel
Frequency response: 60Hz-13kHz
Stability:±0.005%
SNR: >70dB
THD:≤0.5% (at 1kHz)
Receiving Range:50 meters
Antenna:Telescoping
Receiving module power supply: external DC 9 V(Optional DC12V) / 300 mAby power adapter
handheld microphone Launcher power supply: 1.5 V battery (2 PCS)

Receiver board dimensions:72*47mm
