JK9003BT Bluetooth 5.4 TF USB FM AUX MP3 Player Module Decoder Board for Speaker Motherboard

Product describe

JK9003BT Bluetooth 5.4 TF USB FM AUX MP3 Player Module Decoder Board for Speaker Motherboard



Main functions:

1,Support USB, SD card

2,Support FM radio 87.5 ~108MHz

3,Support format:MP3,WMA, WAV, FLAC, APE.

4,Support colorful LED display, with Screen spectrum function

5,Bluetooth:play MP3 by bluetooth device,(optional: can speaker microphone by bluetooth. )

6,Support IR remote control

7,Support Line in

8,Support folders choice.

9,Panel size: diameter:77.5mm, +-0.1mm

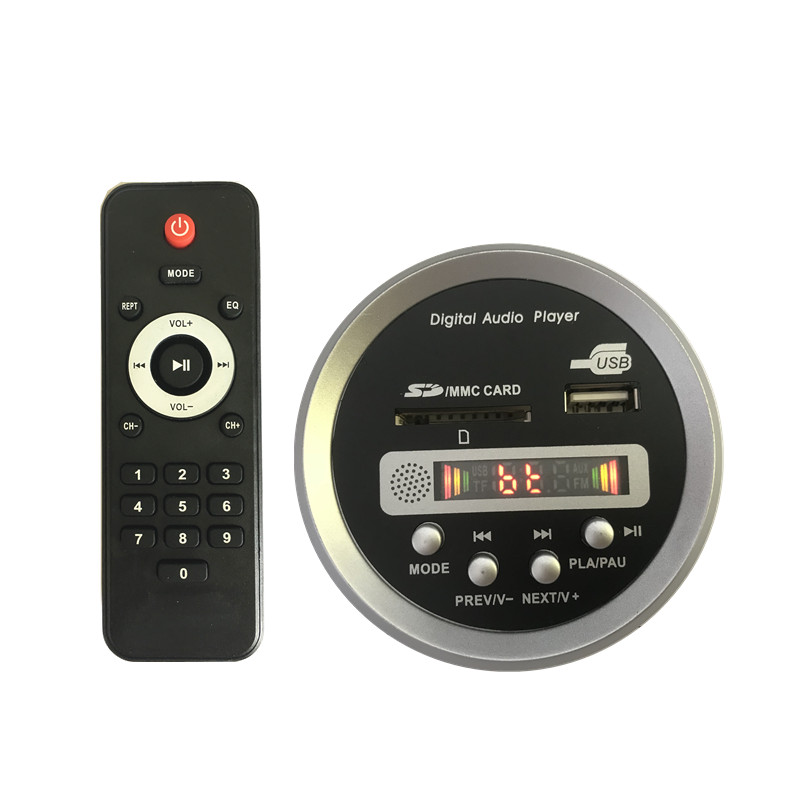

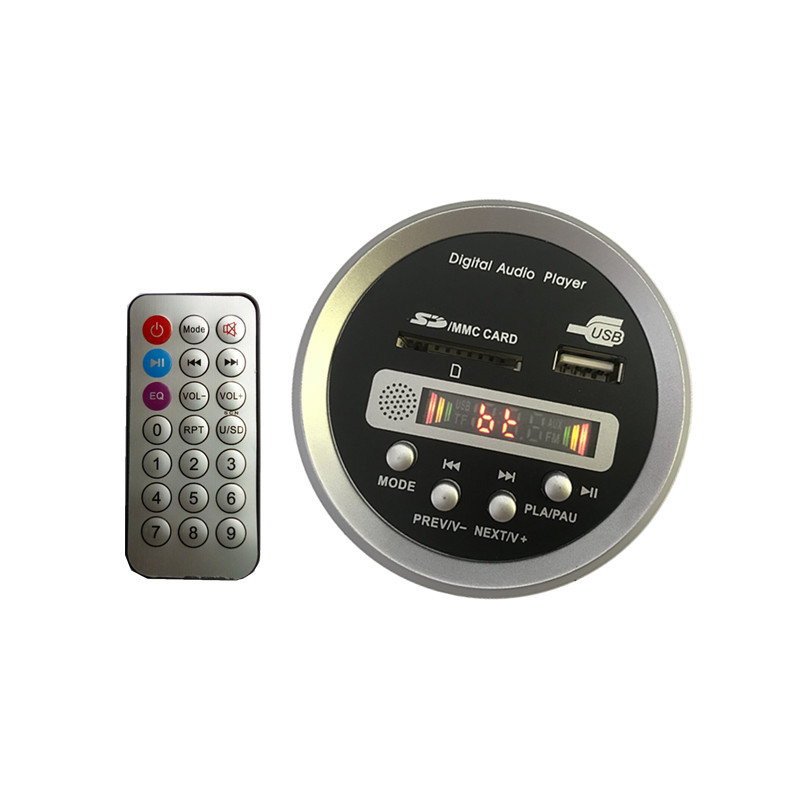

Remote control function:

Power :ON/OFF  (standby)

Mode : USB/SD/FM/Line in(AUX)/Bluetooth for switch the working Mode

PREV: For Previous song in USB/SD state

NEXT: For Next song in USB/SD state

VOL+ : Volume up

VOL-: Volume down

REP: For switching one song repeat or all song repeat in USB/SD state, default is all song repeat .

STOP: For stop the song playing .

MUTE: First press mute , press again will release from mute.

EQ : NORMAL/JAZZ/ROCK/POP/CLASSIC/COUN

PLAY/PAUSE : For play and pause in USB/SD state.

Button 0-9 : Select song in USB/SD state, if the song number over 9 , just input the numbers in series .



Applications :



HI-FI system , MP3 amplifier , Boom Box  ,embedded Audio systems...
