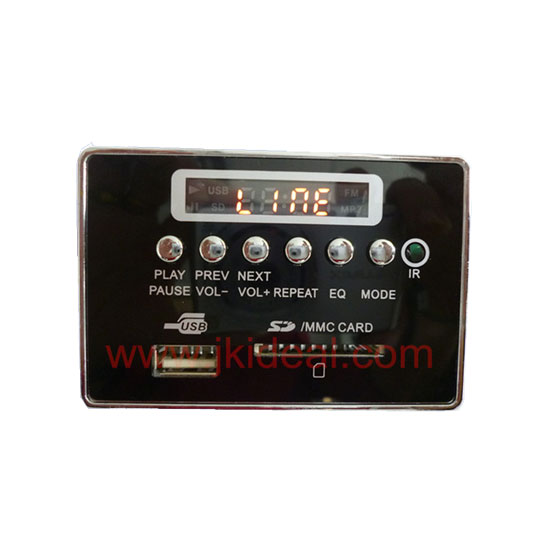

JK6890BT bluetooth usb mp3 module

Product describe

JK6890BT bluetooth usb mp3 module

1,Main functions:
1),Support USB, SD card, format:MP3/WMA
2),Support FM radio 87~108MHz
3,Support LED display.
4),Bluetooth:play MP3 by bluetooth device
5),Support IR remote control
6),Support Line in(AUX)
7),Panel size: 75 mm (length) * 50 mm (width)
2,Remote Control Keys function

Power :ON/OFF  (standby)
Mode : USB/SD/FM/Line in(AUX)/Bluetooth for switch the working Mode
PREV: For Previous song in USB/SD state
NEXT: For Next song in USB/SD state
VOL+ : Volume up
VOL-: Volume down
REP: For switching one song repeat or all song repeat in USB/SD state, default is all song repeat .
STOP: For stop the song playing .
MUTE: First press mute , press again will release from mute.
EQ : NORMAL/JAZZ/ROCK/POP/CLASSIC/COUN
PLAY/PAUSE : For play and pause in USB/SD state.
Button 0-9 : Select song in USB/SD state, if the song number over 9 , just input the numbers in series .

Applications :
HI-FI system , MP3 amplifier , Boom Box  ,embedded Audio systems
