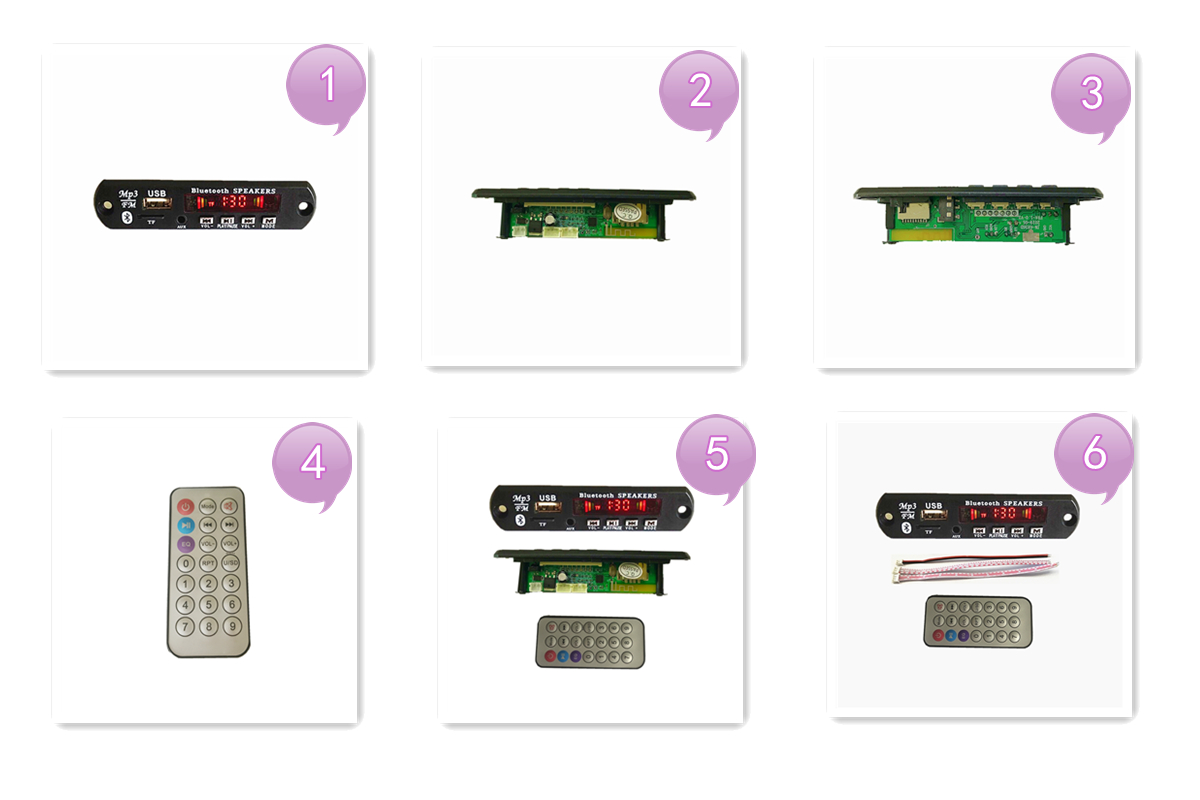

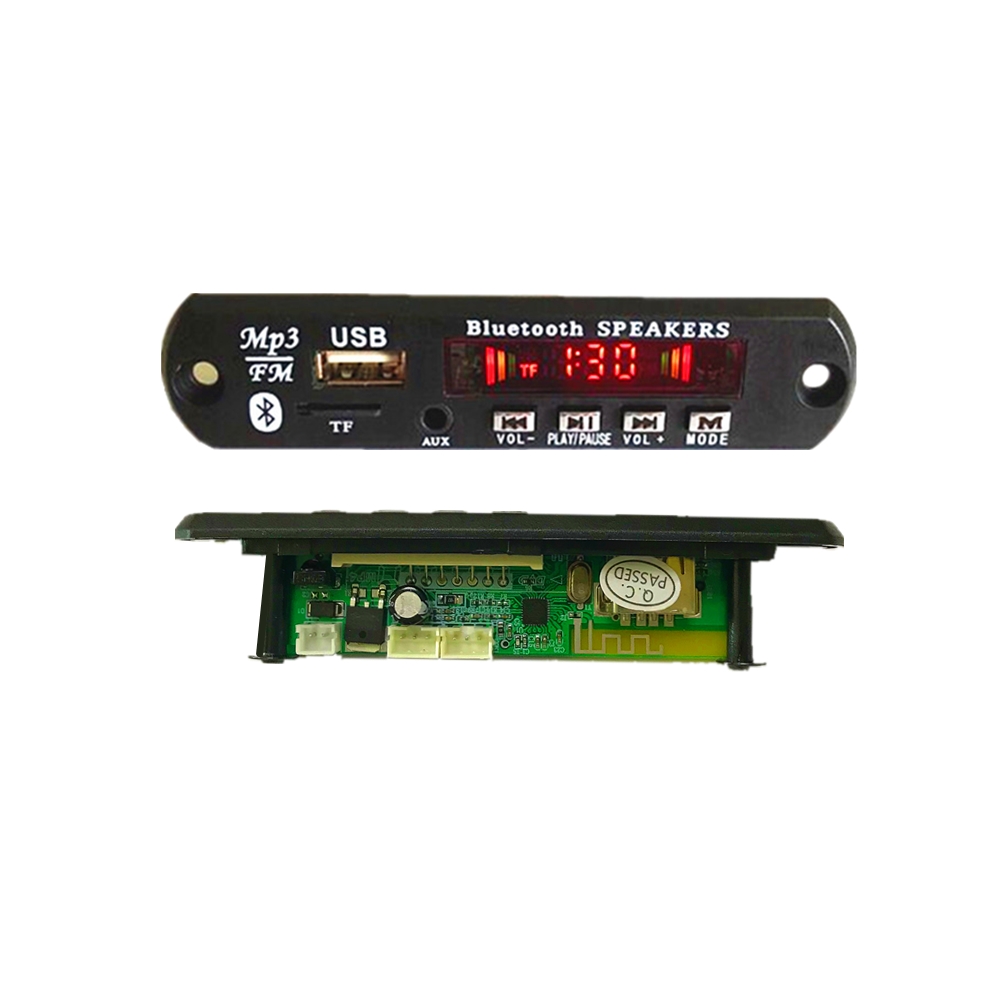

JK6836D DIY speaker Bluetooth fm usb mp3 module

Product describe

JK6836D DIY speaker Bluetooth fm usb mp3 module



Main functions:

1,Support USB, TF card
2,Support FM radio 87.5 ~108MHz
3,Support format:MP3,WMA, WAV, FLAC, APE.
4,Support colorful LED display, with Screen spectrum function
5,Bluetooth:play MP3 by bluetooth device
6,Support IR remote control
7,Support Line in(AUX)
8,Support folders choice.
9,Panel size: 107.5 mm (length) * 25.7 mm (width)
Optional: Recorder function

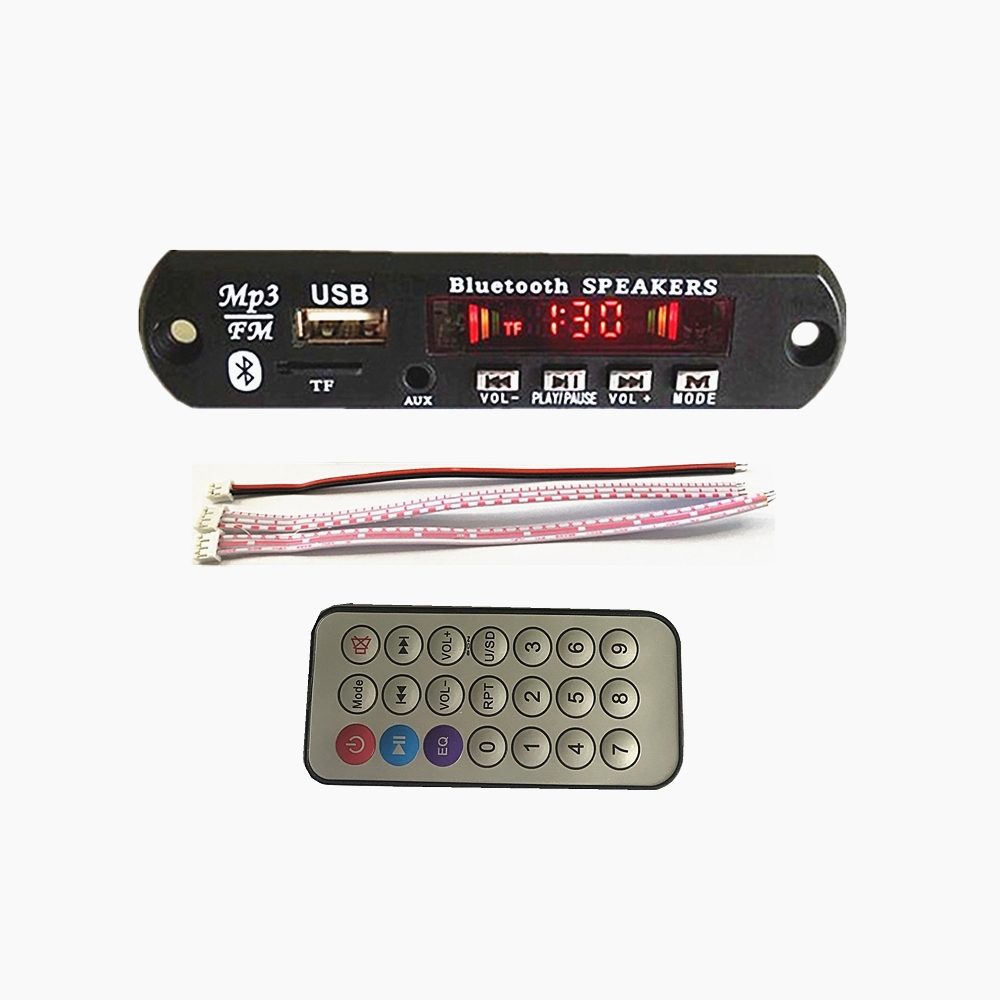

Remote Control Keys function
Power :ON/OFF  (standby)
Mode : USB/SD/FM/Line in(AUX)/Bluetooth for switch the working Mode
PREV: For Previous song in USB/SD state
NEXT: For Next song in USB/SD state
VOL+ : Volume up
VOL-: Volume down
REP: For switching one song repeat or all song repeat in USB/SD state, default is all song repeat .
STOP: For stop the song playing .
MUTE: First press mute , press again will release from mute.
EQ : NORMAL/JAZZ/ROCK/POP/CLASSIC/COUN
PLAY/PAUSE : For play and pause in USB/SD state.
Button 0-9 : Select song in USB/SD state, if the song number over 9 , just input the numbers in series .

Applications :
HI-FI system , Bluetooth speaker, MP3 amplifier , Boom Box  ,embedded Audio systems...
