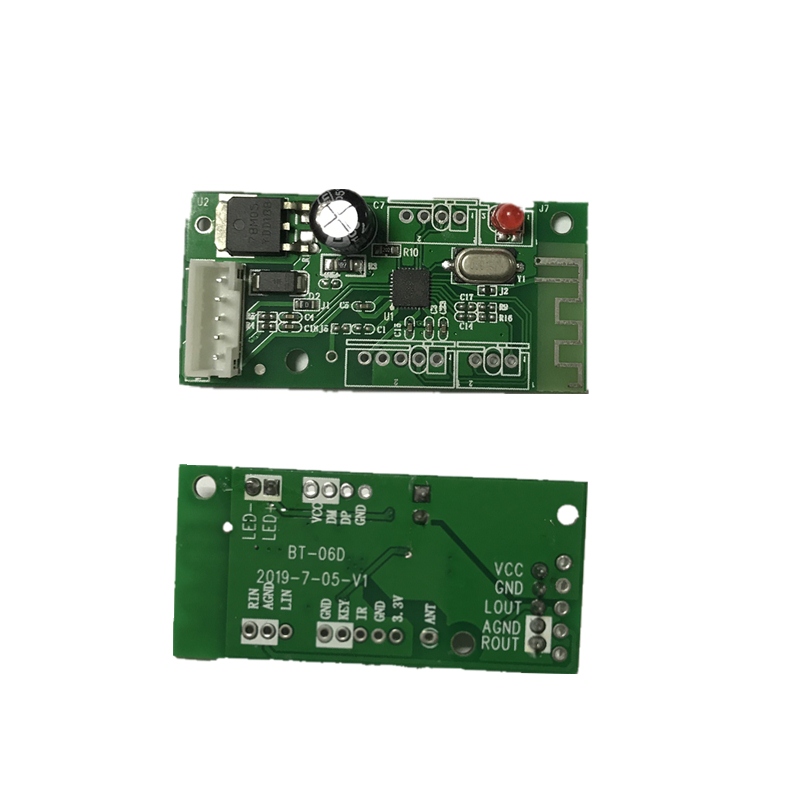

BT-06D 12v Audio Bluetooth receiver module for amplifier speaker
1, Mian function.
Compliant to Bluetooth 5.0 version, backward-compatible with BT1.2, 2.0 and 2.1
Support SCMS-T content protection method;
Class 2 power level, RF Performance: Tx:0dBm, Rx: -80dBm;
Support simple pairing and auto reconnection function;
Support MP3/SBC decoder;
support 16bit Stereo DAC with >90dB SNR, embedded with four class A/B headphone amplifier
16bit Mono ADC with >90dB DR
5Pins connector : VCC(12V), GND, Audio L output, Audio GND, Audio R output.
2, LED light: when power on, the light will on,
When connect Bluetooth, it will flash.
Bluetooth receiver distance: 10 meters.
3, Power supply DC12V
4,Panel dimension : 45*21.5mm
5, Application: Use for amplifier, speaker, audio products.
