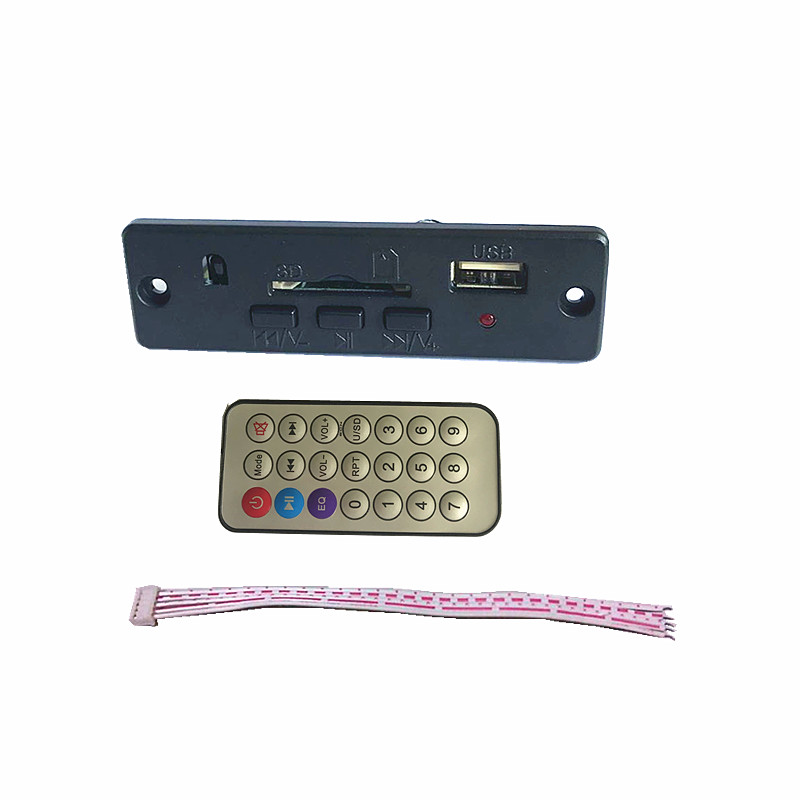

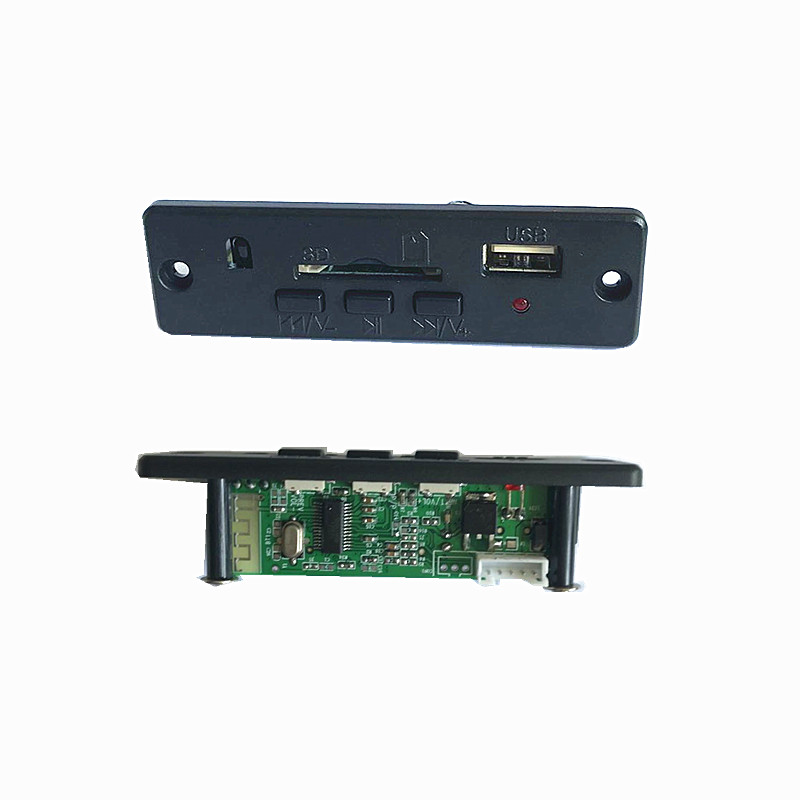

JK001BT Bluetooth usb mp3 player module
1, Function:
USB/SD/MP3/bluetooth
Bluetooth 5.0 version
MP3 decorder support 32–320kbps
FAT16 or FAT32 systems supported
3 Keys: PRE/V-, NEXT/V+, PLAY/PAUSE
With Remote control
2,When power on, it is bluetooth mode, if have U disk or SD card, it plays U disk or SD card firstly.
3, Power supply DC5V (Optional 12V)

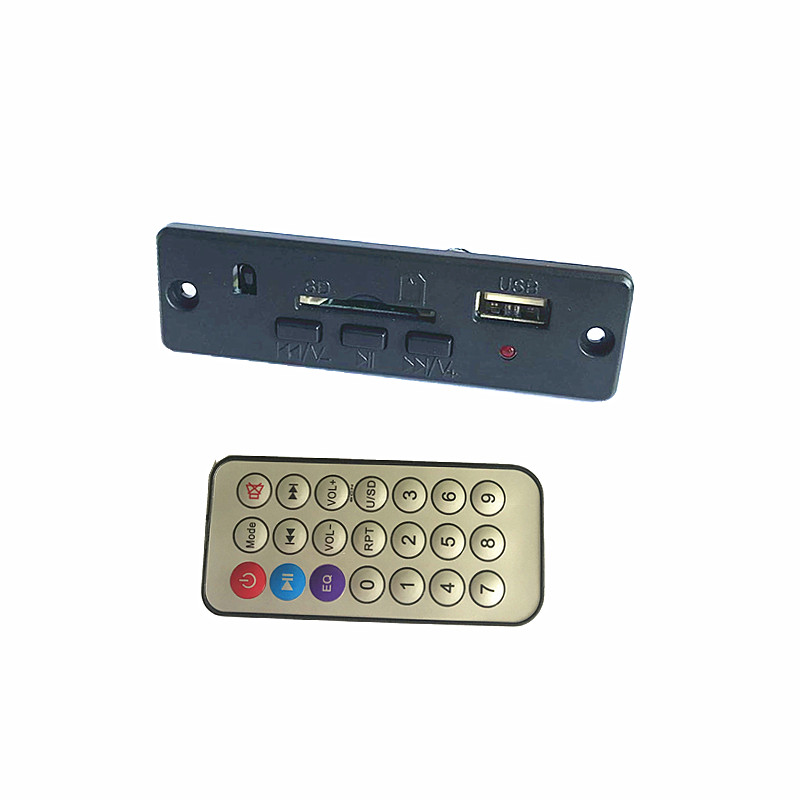

4, Remote Control--- Keys function
Power :ON/OFF (standby)
Mode : Same function with Long press Play/Pause button on pannel for switch the working Mode
PREV: For Previous song in USB/SD/Bluetooth state
NEXT: For Next song in USB/SD/Bluetooth state
VOL+ : Volume up
VOL-: Volume down
RPT: For switching one song repeat or all song repeat in USB/SD state, default is all song repeat .
U/SD: Switch USB/SD /FM scan.
MUTE: First press mute , press again will release from mute.
EQ : NORMAL/JAZZ/ROCK/POP/CLASSIC/COUN
PLAY/PAUSE : For play and pause in USB/SD state.
Button 0-9 : Select song in USB/SD state, if the song number over 9 , just input the numbers in series .

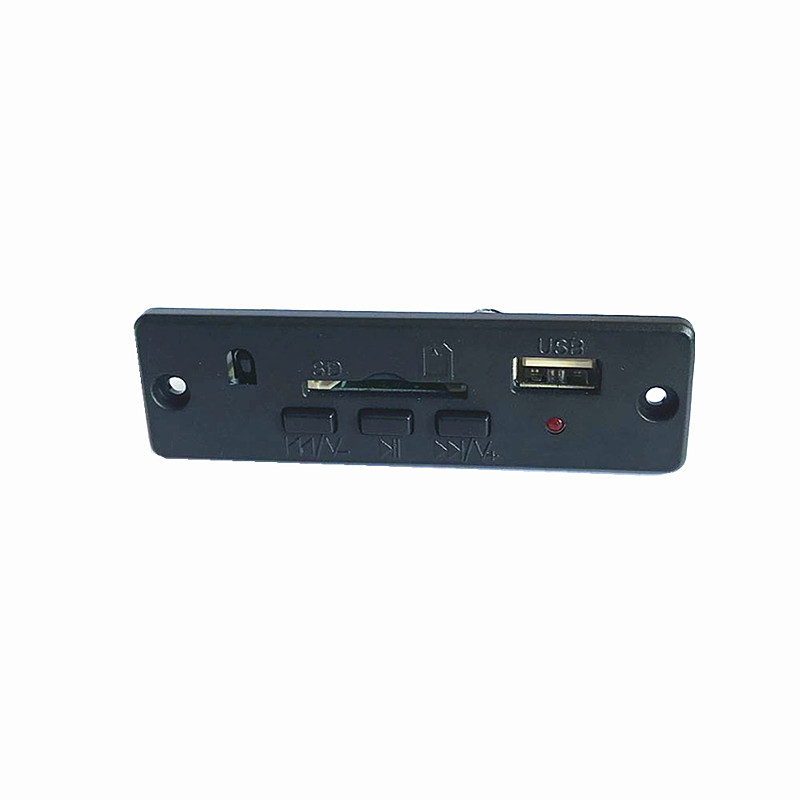

5,Panel dimension :85.5*25.3mm
