This module has multimedia MP3 audio decode board, which highly integrated single-chip.
And add extra signal switch, USB / SD switch, LED display.

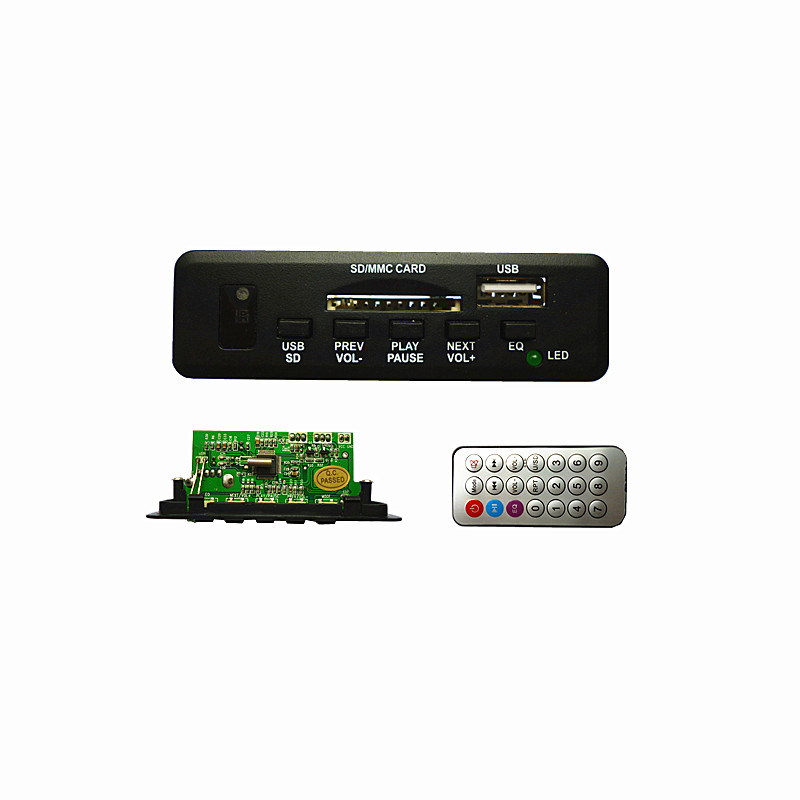

 JK6826 USB SD MP3 decoder

1, Support MP3 format

2, Support USB/SD memory.

3, Option: IR remote control

4, DC 5V/12V

5, Five Keys

6,Panel color:Black, silvery, yellow.

7,Panel dimensions:83*24.5cm.



Remote Control Keys function

Power :ON/OFF  (standby)

Mode : Same function with Long press Play/Pause button on pannel for switch the working Mode

PREV: For Previous song in USB/SD state

NEXT: For Next song in USB/SD state

VOL+ : Volume up

VOL-: Volume down

REP: For switching one song repeat or all song repeat in USB/SD state, default is all song repeat .

STOP: For stop the song playing .

MUTE: First press mute , press again will release from mute.

EQ : NORMAL→JAZZ→ROCK→POP→CLASSIC→COUN

PLAY/PAUSE : For play and pause in USB/SD state.

Button 0-9 : Select song in USB/SD state, if the song number over 9 , just input the numbers in series .



Applications :

HI-FI system , MP3 amplifier , Boom Box  ,embedded Audio systems
