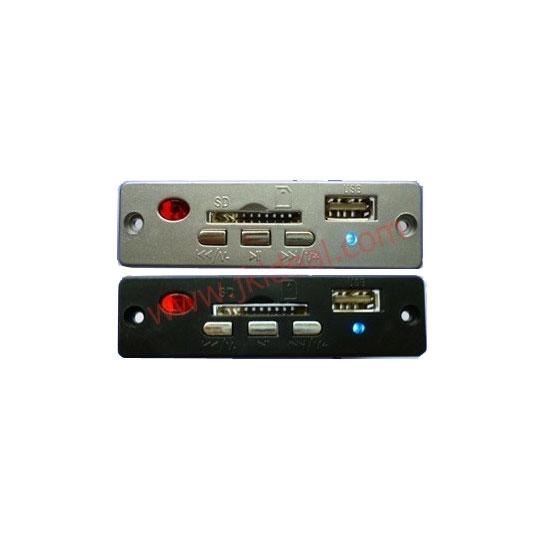

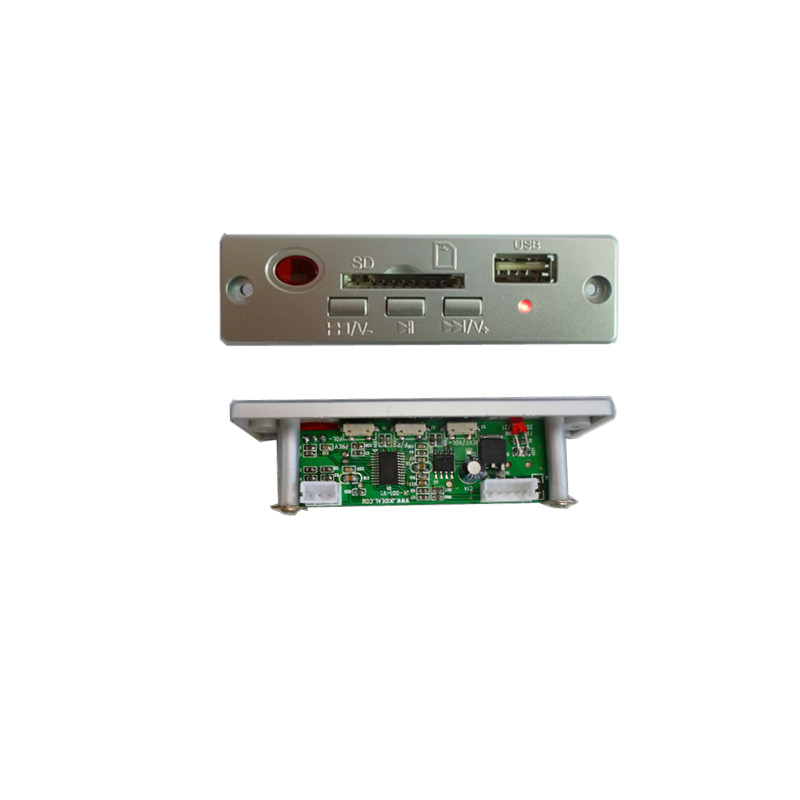

JK0001 USB SD MP3 kit

1, Functions: USB/SD/MP3/Line in (AUX)/FM

  MP3 decorder support 32–320kbps

  FAT16 or FAT32 systems supported

  3 Keys: PRE/V-, NEXT/V+, PLAY/PAUSE

  With Remote control

2, This decoder has 3 keys.

PRE/V-: Under MP3 mode, short press LAST, long press VOL-.

       Under AUX mode, press VOL-

       Under FM mode, short press : turn down search radio station.

NEXT/V+: Under MP3 mode, short press NEXT, long press VOL+.

         Under AUX mode, press VOL+.

         Under FM mode, short press: turn up search radio station.

PLAY/PAUSE: Under MP3 mode, short press PLAY/PAUSE, long press STOP..

             Under AUX mode, press PLAY/PAUSE.

             Under FM mode, short press auto search

3, Power supply DC5V( Optional 12V)

4, Remote Control Keys function

Power :ON/OFF  (standby)

Mode : Same function with Long press Play/Pause button on pannel for switch the working Mode

PREV: For Previous song in USB/SD state



NEXT: For Next song in USB/SD state

VOL+ : Volume up

VOL-: Volume down

RPT: For switching one song repeat or all song repeat in USB/SD state, default is all song repeat .

U/SD: Switch USB/SD /FM scan.

MUTE: First press mute , press again will release from mute.

EQ : NORMAL→JAZZ→ROCK→POP→CLASSIC→COUN

PLAY/PAUSE : For play and pause in USB/SD state.

Button 0-9 : Select song in USB/SD state, if the song number over 9 , just input the numbers in series .

5Size:76*25mm
