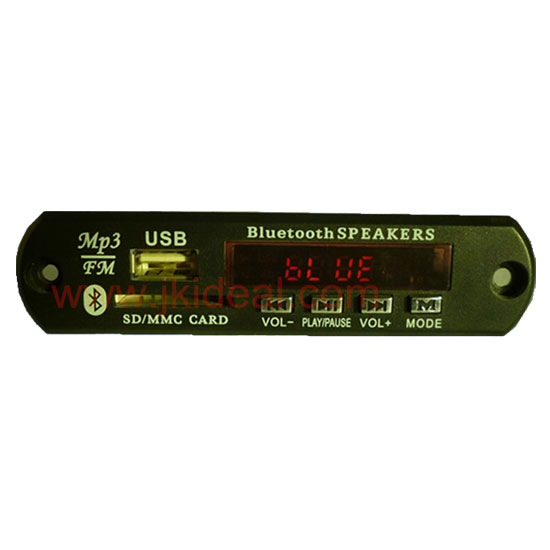

JK-6839BT Bluetooth FM mp3 decoder,mp3 module

Main functions:

1,Support USB, SD card
2,Support FM radio 87~108MHz
3,Support LED display.
4,Bluetooth:play MP3 by bluetooth device
5,Support IR remote control
6,Support Line in(AUX)
7,Panel size: 107.5 mm (length) * 25.7 mm (width)

Remote Control Keys function
Power :ON/OFF  (standby)

Mode : USB/SD/FM/Line in(AUX)/Bluetooth for switch the working Mode

PREV: For Previous song in USB/SD state

NEXT: For Next song in USB/SD state

VOL+ : Volume up

VOL-: Volume down

REP: For switching one song repeat or all song repeat in USB/SD state, default is all song repeat .

STOP: For stop the song playing .

MUTE: First press mute , press again will release from mute.


PLAY/PAUSE : For play and pause in USB/SD state.

Button 0-9 : Select song in USB/SD state, if the song number over 9 , just input the numbers in series .
