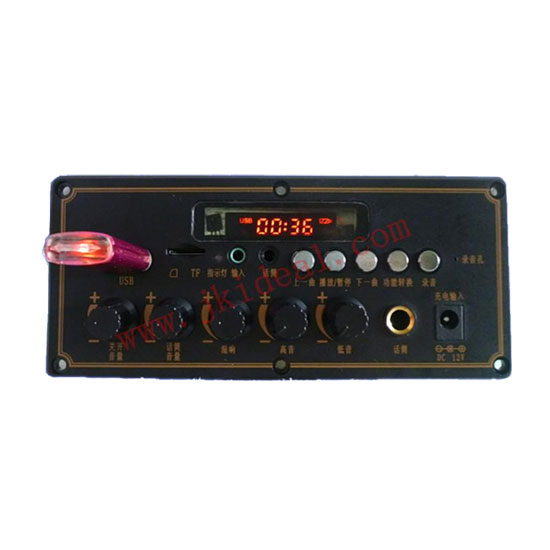

JK22A61 Record MP3 with amplifier module

1, Main Functions:
  1),USB/TF/MP3/Line in (AUX)/FM/MIC recorder(MP3 format)
  2),5 Keys: PREV, PLAY/PAUSE, NEXT,MODE,REC
  3),With IR Remote control
  4),Amplifier 15W x 1CH or 25W x 1CH
  5),Volume: On/Off volume, micphone volume, reverb, Treble, Bass
  6),Power supplier:DC12V/Battery 12V
  7),Panel dimensions: 15 x 6.6cm

2,Keys functions.
PREV: Under MP3 mode, press Previous,
      Under AUX mode, non function.
      Under FM mode, short press to selection down.
PLAY/PAUSE: Under MP3 mode, press PLAY/PAUSE.
             Under AUX mode, press PLAY/PAUSE.
             Under FM mode, short press to automatic selection.
NEXT: Under MP3 mode, press NEXT
         Under AUX mode, non function.
         Under FM mode, short press to selection up.
MODE: Choose USB/SD/AUX/FM.
REC: Press REC to MIC record, when recording, press REC key to save recorded file.

3, Remote Control Keys function
Power :ON/OFF(standby)

Mode : Same function with Long press Play/Pause button on pannel for switch the working Mode
MUTE: First press mute , press again will release from mute.
PLAY/PAUSE : For play and pause in USB/SD state.
PREV: For PREV song in USB/SD state.
NEXT: For Next song in USB/SD state
EQ : NORMAL/JAZZ/ROCK/POP/CLASSIC/COUN
-: Volume down
+ : Volume up
RPT: For switching one song repeat or all song repeat in USB/SD state, default is all song repeat .
U/SD/Scan: USB/SD/FM switch .
Button 0-9 : Select song in USB/SD state, if the song number over 9 , just input the numbers in series .

4, Connect drawing:

The panel will with English versions.

Applications :
HI-FI system, portable speaker, embedded Audio systems.
