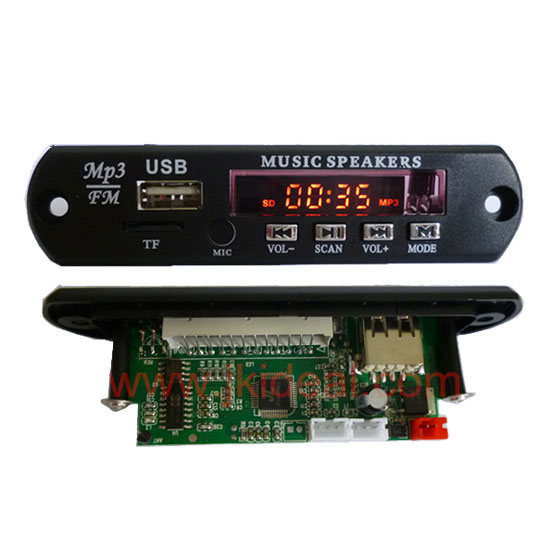

JK3090 Recorder mic usb tf mp3 module


1, Main functions:

USB/TF/Line in (AUX)/FM/Recorder
Format:MP3/WMA
Record from MIC/Line in/FM into USB or TF card.
Recorder format:MP3
4 Keys: MODE, NEXT/V+, PLAY/PAUSE/SCAN, PRE/V-
With Remote control
Panel dimension :105*25.5mm
Power supply:DC5V or 12V

2, Remote Control--- Keys function

Power :ON/OFF  (standby)
Mode : Same function with Long press Play/Pause button on pannel for switch the working Mode
PREV: For Previous song in USB/TF state
NEXT: For Next song in USB/SD state
VOL+ : Volume up
VOL-: Volume down
RPT: For switching one song repeat or all song repeat in USB/SD state, default is all song repeat .
REC: first time press for record, second time press for save and playing recorded file.
MUTE: First press mute , press again will release from mute.
EQ : NORMAL/JAZZ/ROCK/POP/CLASSIC/COUN
PLAY/PAUSE : For play and pause in USB/SD state.
Button 0-9 : Select song in USB/TF state, if the song number over 9 , just input the numbers in series .

Applications :
HI-FI system , MP3 amplifier , Boom Box, embedded Audio systems
