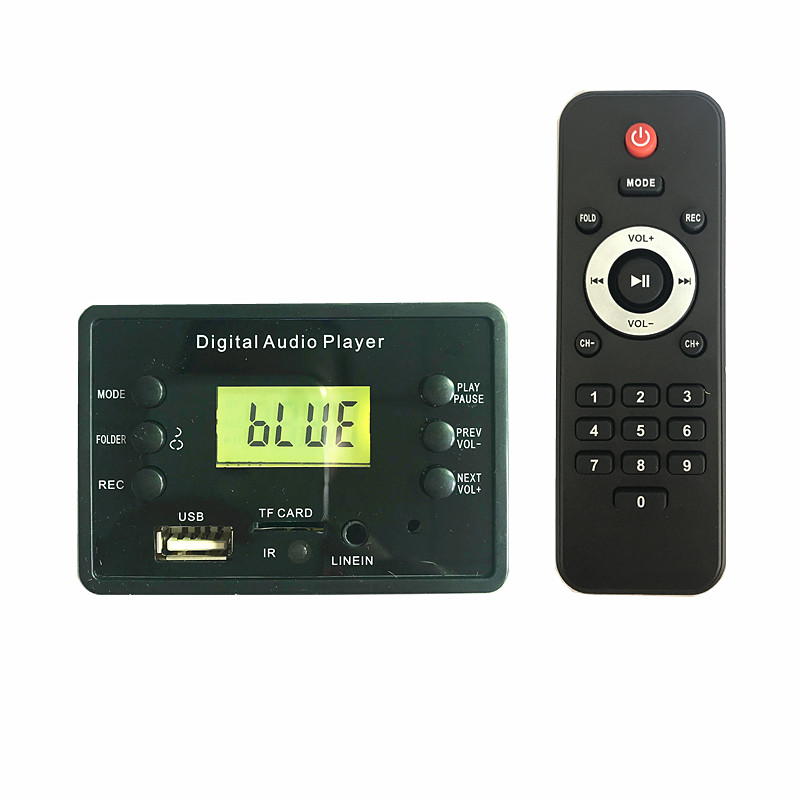

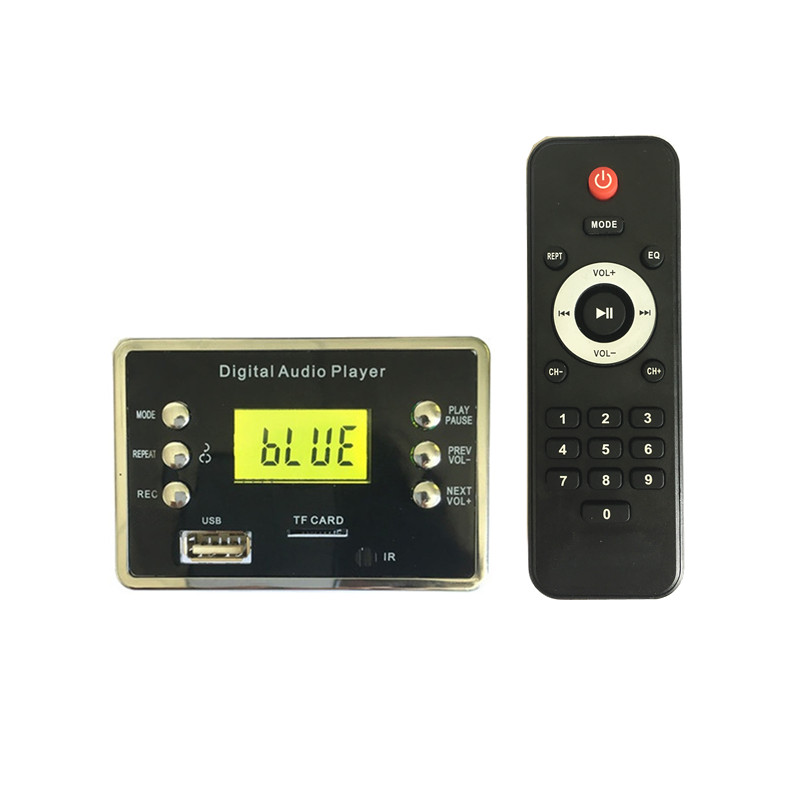

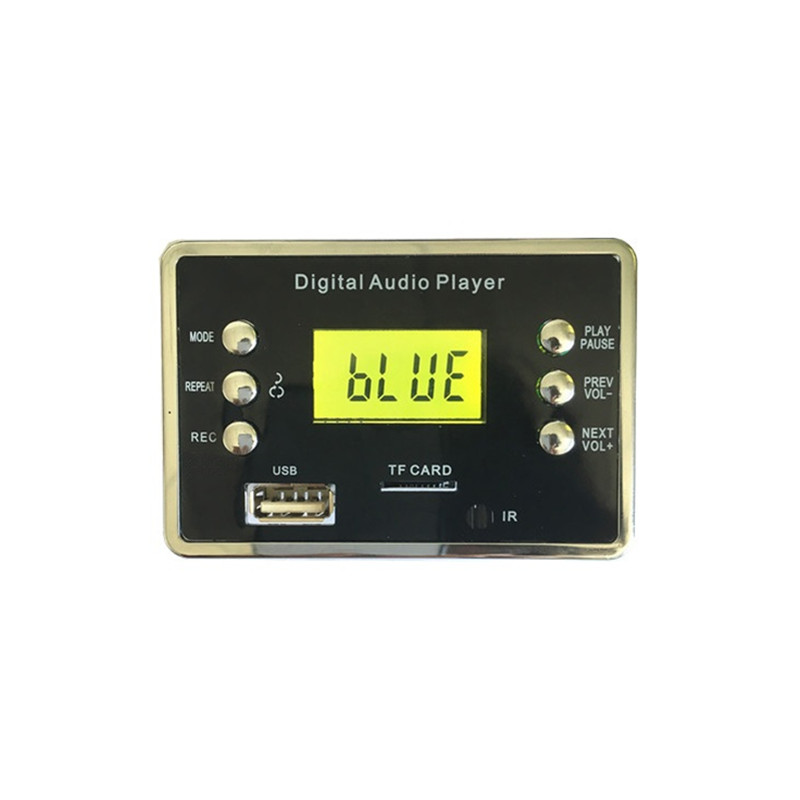

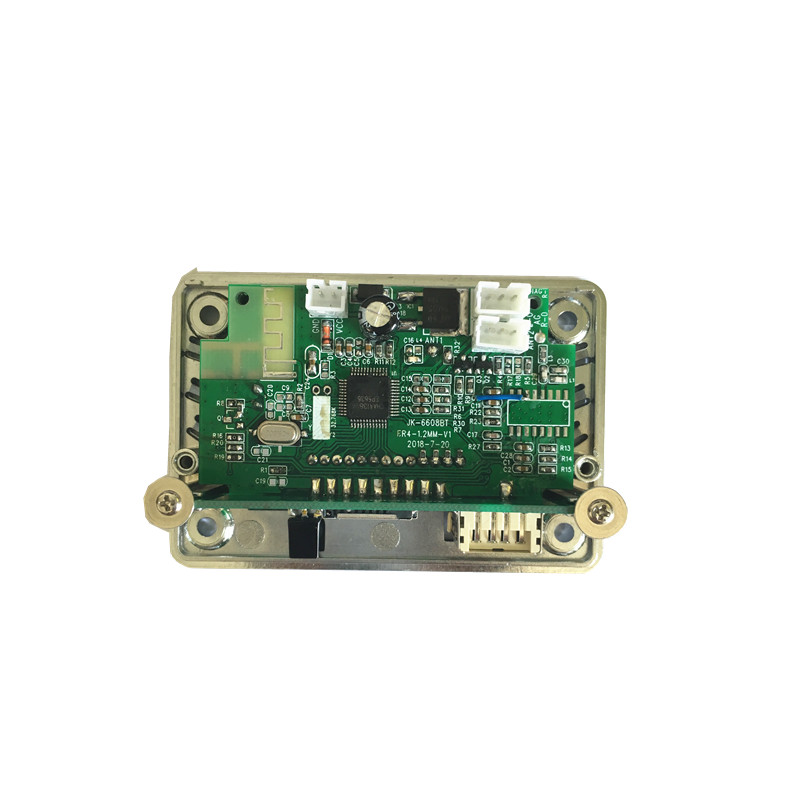

JK6608BT Bluetooth V5.0 recorder usb fm mp3 module

Product describe

 JK6608BT Bluetooth V5.0 recorder usb fm mp3 module

1,  Bluetooth V5.0  recorder usb fm mp3 module Functions:

    USB/SD/MP3/WMA/Line in (AUX)/FM

    Support Bluetooth V5.0

   Recording all modes, MP3 format

   MP3 decorder support 32–320kbps

   FAT16 or FAT32 systems supported

   Format: MP3, WMA, WAV, FLAC, APE

  6 Keys: PLAY/PAUSE,PREV/VOL-,NEXT/VOL+,MODE, REPEAT,REC

  With IR big Remote control



2, Keys function:

PLAY/PAUSE: Under MP3 mode, short press PLAY/PAUSE, long press STOP..

             Under AUX mode, press PLAY/PAUSE.

             Under FM mode, short press to automatic selection.

PRE/VOL-: Under MP3 mode, short press LAST, long press VOL-.

       Under AUX mode, press VOL-

       Under FM mode, short press to selection down, long press VOL-.

NEXT/VOL+: Under MP3 mode, short press NEXT, long press VOL+.

         Under AUX mode, press VOL+.

         Under FM mode, short press to selection up, long press VOL+.



MODE: switch USB, TF, FM, LINE IN, Bluetooth

REPEAT: single repeate, all repeate.

REC: Recorder

3, Power supply DC5V (Optional 12V)

4, Panel  dimension :77.5*52.5mm

Applications :

Pro audio, Mixer, HI-FI system, AV amplifier , Boom Box ,embedded Audio systems, Lighting, Electronic gifts, Electronic toys and so on.
