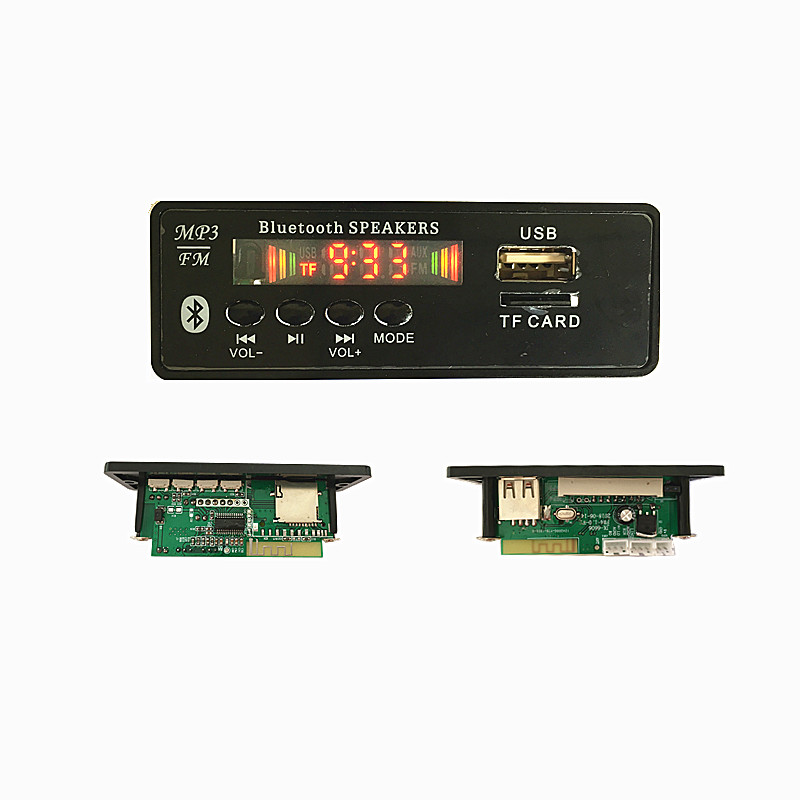

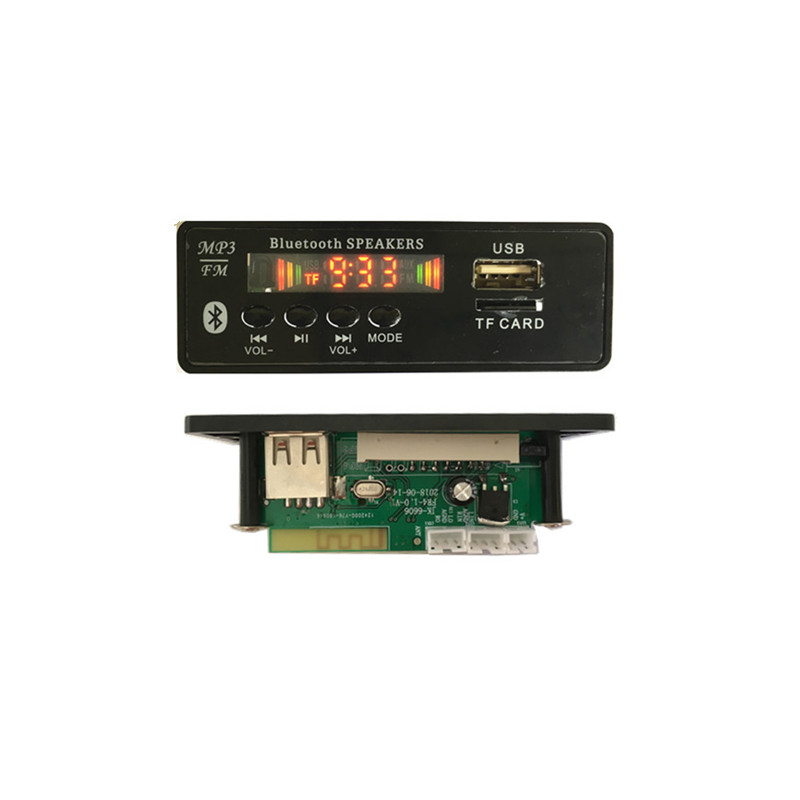

JK6606 Bluetooth V5.0 USB MP3 module
1, Main functions:
Support USB, TF card
Support FM radio 87.5~108MHz
Support colorful LED display.
Bluetooth:play MP3 by bluetooth device,Bluetooth Version:5.0
Support IR remote control
Support Line in(AUX)
Opional recorder
Panel size: 84 mm (length) * 29.5 mm (width)
Power supply:DC12V(Optional 5V)

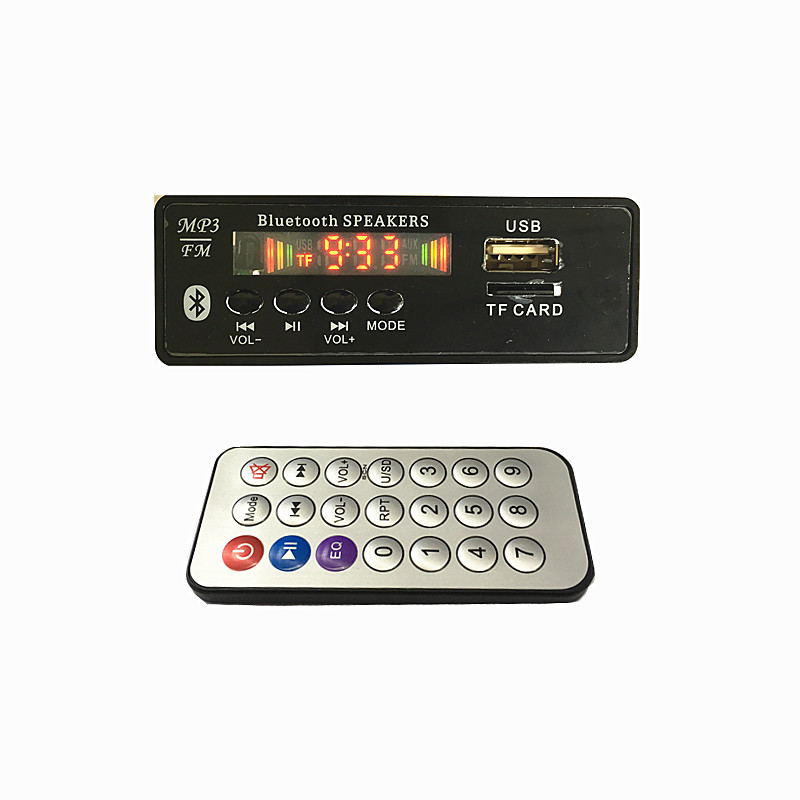

IR remote control
2, Remote Control Keys function
Power :ON/OFF (standby)
Mode : USB/SD/FM/Line in(AUX)/Bluetooth for switch the working Mode
PREV: For Previous song in USB/SD state
NEXT: For Next song in USB/SD state
VOL+ : Volume up
VOL-: Volume down
REP: For switching one song repeat or all song repeat in USB/SD state, default is all song repeat .
STOP: For stop the song playing .
MUTE: First press mute , press again will release from mute.
EQ : NORMAL/JAZZ/ROCK/POP/CLASSIC/COUN
PLAY/PAUSE : For play and pause in USB/SD state.
Button 0-9 : Select song in USB/SD state, if the song number over 9 , just input the numbers in series .
Applications :
HI-FI system , Bluetooth speaker, MP3 amplifier , Boom Box ,embedded Audio systems...
