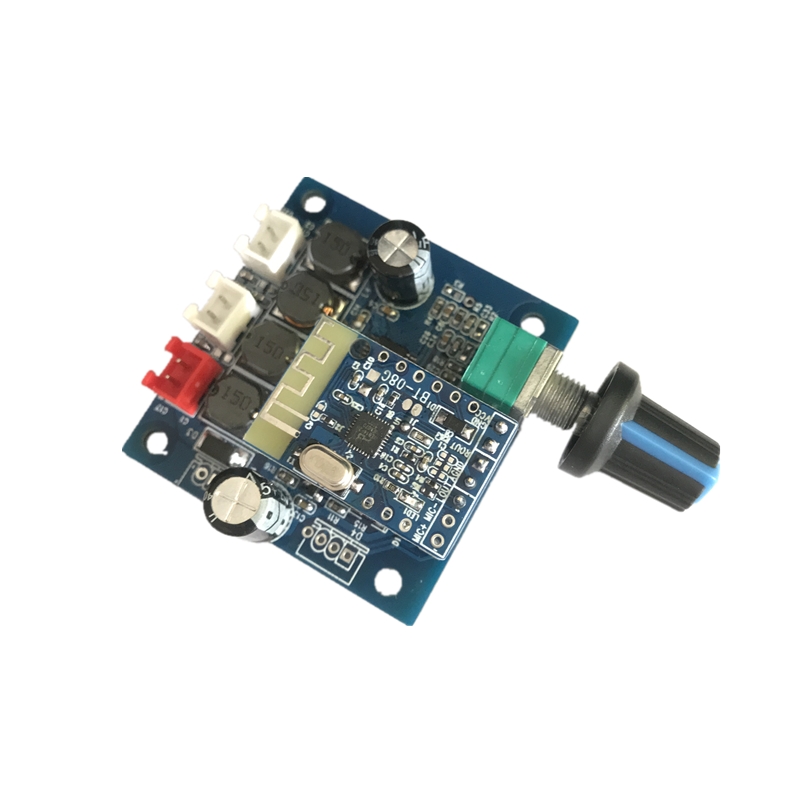

JK-AMP01B DC12V Bluetooth 5.0 class D amplifier board 10W*2CH
1, Main function:
|
Product Name |
Bluetooth 5.0 Digital audio power amplifier board |
|
Product Model |
JK-AMP01B / BT-08G |
|
Magnification type |
Class D |
|
Work efficiency |
90% |
|
Chip selection |
CSC3110 |
|
Supply voltage |
DC 12V |
|
input current |
Max 3A |
|
output power |
10Wx2ch ＠VDDP=12V RL=8Ω |
|
THD+N |
10% |
|
Number of channels |
Dual channels |
| Channels | Stereo |
|
size |
47*45.6*18mm |
2, channel Stereo Analog MUX;
One channel MIC amplifier input;
High performance Stereo audio ADC with 90dB SNR;
High performance Stereo audio DAC with 95dB SNR,with headphone amplifier output;
Optional: Bluetooth microphone for calling by cellphone.
Bluetooth receiver distance: 10 meters.

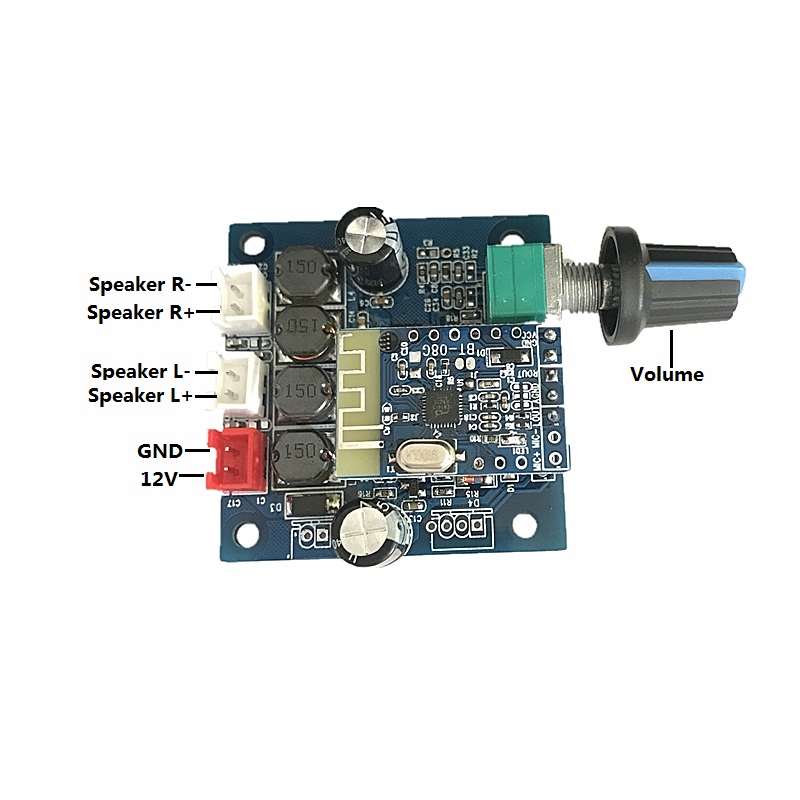

LED light: when power on, the light will on,
When connect Bluetooth, it will flash.
3, Application: Use for speaker, audio products.
