JK6608BT For speaker Bluetooth record MIC usb tf mp3 decoder module
1, Bluetooth record usb tf mp3 module Functions:
USB/SD/MP3/WMA/Line in (AUX)/FM/MIC
Support Bluetooth V5.0,distance more than 10 meters
Recording all modes, MP3 format
MP3 decorder support 32–320kbps
FAT16 or FAT32 systems supported
Format: MP3, WMA, WAV, FLAC, APE
6 Keys: PLAY/PAUSE,PREV/VOL-,NEXT/VOL+,MODE, REPEAT,REC

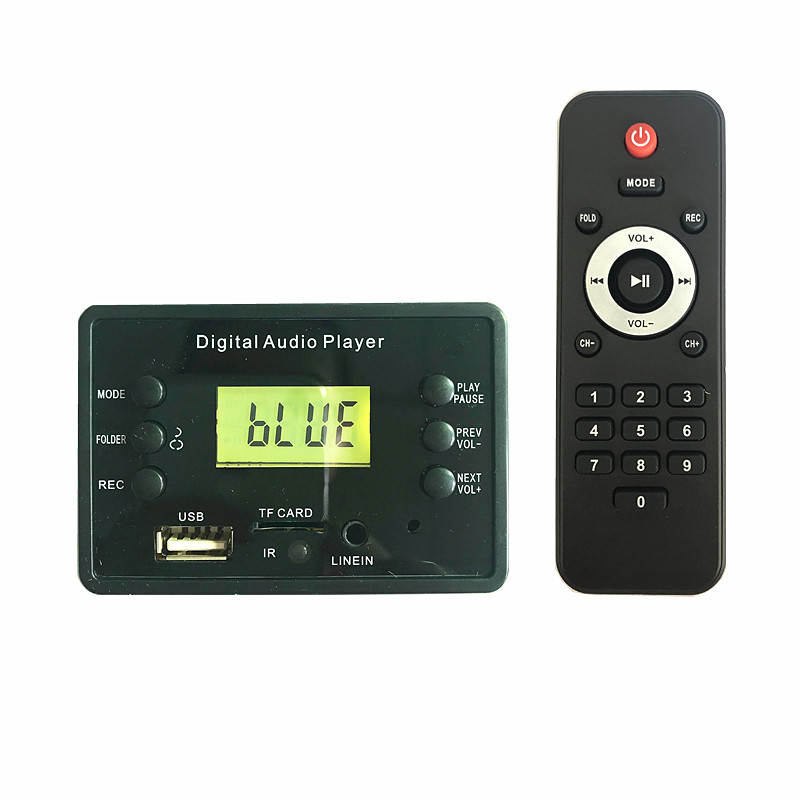

With IR big Remote control
* Support OEM & ODM service.
2, Keys function:
PLAY/PAUSE: Under MP3 mode, short press PLAY/PAUSE, long press STOP..
Under AUX mode, press PLAY/PAUSE.
Under FM mode, short press to automatic selection.
PRE/VOL-: Under MP3 mode, short press LAST, long press VOL-.
Under AUX mode, press VOL-
Under FM mode, short press to selection down, long press VOL-.
NEXT/VOL+: Under MP3 mode, short press NEXT, long press VOL+.
Under AUX mode, press VOL+.
Under FM mode, short press to selection up, long press VOL+.
MODE: switch USB, TF, FM, LINE IN, Bluetooth
REPEAT: single repeate, all repeate.
REC: Recorder
3, Power supply DC5V (Optional 12V)
4, Panel dimension :77.5*52.5mm

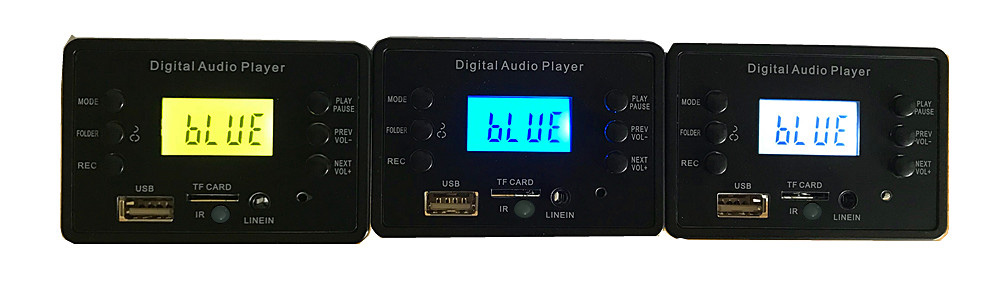

LED color: Yellow, blue, white
Label: black or silvery.
