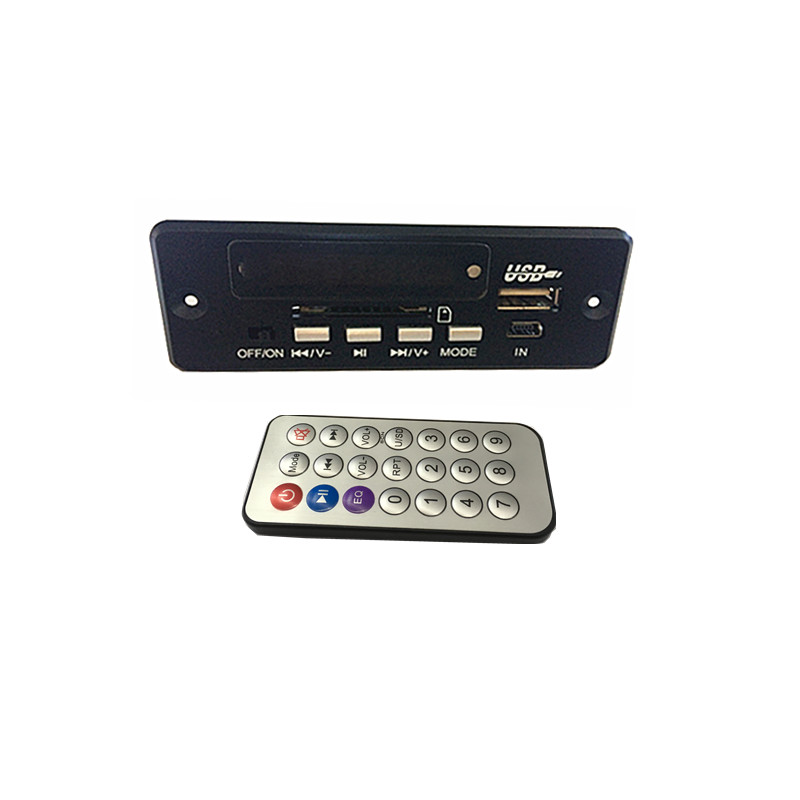

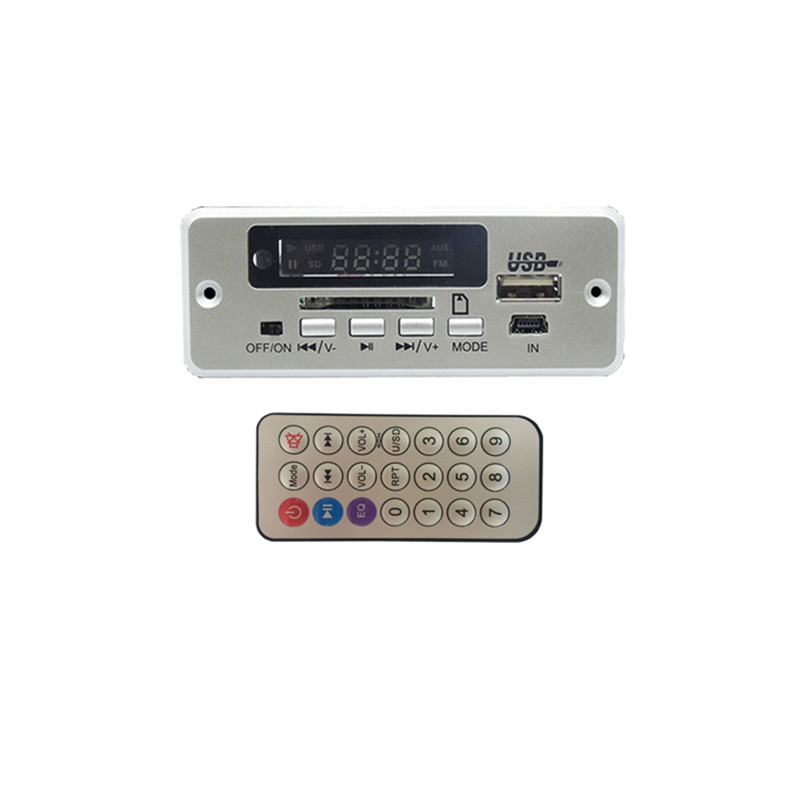

JK0061BT Bluetooth fm radio mp3 player board with usb sd
1. function of fm radio mp3 player board with usb sd.
Bluetooth /USB/SD/MP3/Line in (AUX)/FM
MP3 decorder support 32–320kbps
FAT16 or FAT32 systems supported
4 Keys: MODE, NEXT/V+, PLAY/PAUSE/SCAN, PRE/V-
With Remote control
2, Keys function:
MODE: USB/SD/AUX/FM / Bluetooth switch.
NEXT/V+: Under MP3 mode, short press NEXT, long press VOL+.
Under AUX mode, press VOL+.
Under FM mode, short press to selection up, long press VOL+.
PLAY/PAUSE:Under MP3 mode, short press PLAY/PAUSE, long press STOP..
Under AUX mode, press play/mute.
Under FM mode, short press to automatic selection.
PRE/V-: Under MP3 mode, short press LAST, long press VOL-.
Under AUX mode, press VOL-
Under FM mode, short press to selection down, long press VOL-.
3, Power supply DC5V /12V
4, Remote Control--- Keys function
Power :ON/OFF (standby)
Mode : Same function with Long press Play/Pause button on pannel for switch the working Mode
PREV: For Previous song in USB/SD state
NEXT: For Next song in USB/SD state
VOL+ : Volume up
VOL-: Volume down
RPT: For switching one song repeat or all song repeat in USB/SD state, default is all song repeat .
U/SD: Switch USB/SD /FM scan.
MUTE: First press mute , press again will release from mute.
EQ : NORMAL/JAZZ/ROCK/POP/CLASSIC/COUN
PLAY/PAUSE : For play and pause in USB/SD state.
Button 0-9 : Select song in USB/SD state, if the song number over 9 , just input the numbers in series .
5,Panel dimension : 92*35mm
